1.69.507.105/1301 | RAFI
Signal lamp, 24 V (DC), red, Mounting Ø 10 mm, 1.69.507.105/1301
Signal lamps with integrated filament bulb, type RAFI 1.69.507.
Panel mount diameter: 10 mm. Housing: PC, white. Lens: PC, welded on, grooved or serrated inside. Fastening: press-fit into the mounting cut-out. Lamp: installed fixed. Tab terminals 2.8 x 0.8 mm, tinned, solderable. Degree of protection: IP 40 at the switchboard front. Lamp specs: 12 to 14 V, 24 to 28 V, each 1.2 W. Operating temperatures: up to +85 °C.

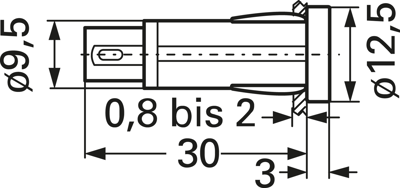

Design 1 with round lens of 12.5 mm diameter.
Technical attributes (type, operating voltage (min/max), lens color): 105/1301, 24/28 V, red
Connection | faston plug 2.8 x 0.8 mm | |
Diode Diameter | 12.5 mm | |
Installation diameter | 10 mm | |
Farbe der Beleuchtung | red | |
Assembly | snap-in | |
Rated voltage (DC) | 24 V |
Country of origin | HU |
Customs tariff number | 85414100 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
