1.15.106.505/1000 | RAFI

Pushbutton, 2 pole, transparent, illuminated  (white), 0.5 A/24 V, mounting Ø 9.1 mm, IP40, 1.15.106.505/1000

Order No.: 12G570
EAN: 4099889193053
MPN:
1.15.106.505/1000

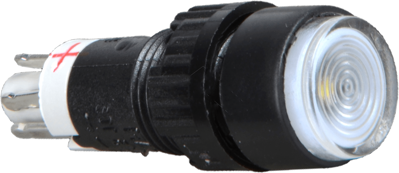

1.15.106.505/1000 RAFI Pushbutton Switches Image 1
1.15.106.505/1000 RAFI Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
19.5279 € *
Available: 50 pcs.
Total Price:
19.53 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5279 €
5 pcs.
18.3498 €
15 pcs.
17.6477 €
50 pcs.
16.8623 €
150 pcs.
16.1602 €
*incl. VAT plus shipping costs
Subject to prior sale

Pushbutton and illuminated pushbutton switches, type RAFI 1.15.106.

1 NO + 1 NC; Panel-mount diameter: 9.1 mm. Mounting: with threaded ring. Bezel color: black. Switching voltage: max. 24 V. Switching current: max. 0.5 A. Connections: solder terminals, tinned. Actuating force: max. 5.0 N. Actuating travel: 1.5 mm. Degree of protection: IP 40 at the switchboard front.

Illuminated pushbutton switches with permanently installed super-bright LED, type 1.15.106.

LED voltage: 2.0 V/10 mA or external protective resistor (recommended values for the LED resistor: 5.0 to 7.0 V: 270 ohm, 0.25 W, 12 to 14 V: 680 ohm, 0.5 W and 24 to 28 V: 1500 ohm, 1.0 W).

Technical attributes (type, lens color): 1.15.106.505/1000, white

Technical specifications
Filter Property Value
Printed No
Installation diameter 9.1 mm
contact surface gold-plated
Breaking capacity 0.5 A/24 V
Actuator colour transparent
Farbe der Beleuchtung white
Pin number 2 pole
Design round
illuminated Yes
Connection solder connection
Protection class IP40
Latching switching function groping
Logistics
Property Value
Country of origin HU
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
