1.15.106.021/1403 | RAFI
Pushbutton, 2 pole, transparent, illuminated (yellow), 0.5 A/24 V, mounting Ø 9.1 mm, IP40, 1.15.106.021/1403
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
20.4799 € *
Standard delivery time from the manufacturer is: On Request

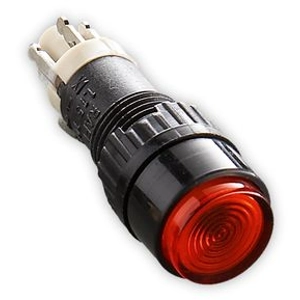

Pushbutton switch, 1.15.106.021/1403, RAFI
Illuminated pushbutton 9.1 mm, with integrated filament lamp,momentary contact function, 1 NC + 1 NO, bezel yellow
Aplications
- Mechanical and system engineering
- Model construction
- Home technology
Technical Data
- Switching function: Push button
- Colour: yellow
- Mounting diameter: 9,1 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 2 pole | |
| Actuator colour | transparent | |
| Breaking capacity | 0.5 A/24 V | |
| illuminated | Yes | |
| Farbe der Beleuchtung | yellow | |
| Printed | No | |
| Connection | solder connection | |
| Design | round | |
| contact surface | gold-plated | |
| Installation diameter | 9.1 mm | |
| Protection class | IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
