1.15.106.504/1600 | RAFI

Pushbutton, 2 pole, transparent, illuminated  (blue), 0.5 A/24 V, mounting Ø 9.1 mm, IP40, 1.15.106.504/1600

Order No.: 12G578
EAN: 4099889193091
MPN:
1.15.106.504/1600

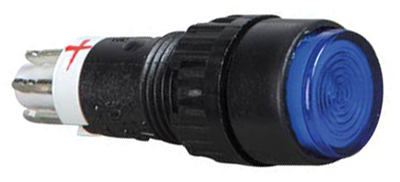

1.15.106.504/1600 RAFI Pushbutton Switches Image 1

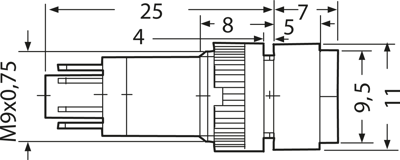

1.15.106.504/1600 RAFI Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
19.5279 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
19.53 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5279 €
5 pcs.
18.3498 €
15 pcs.
17.6477 €
50 pcs.
16.8623 €
150 pcs.
16.1602 €
*incl. VAT plus shipping costs
Subject to prior sale

Pushbutton and illuminated pushbutton switches, type RAFI 1.15.106.

1 NO + 1 NC; Panel-mount diameter: 9.1 mm. Mounting: with threaded ring. Bezel color: black. Switching voltage: max. 24 V. Switching current: max. 0.5 A. Connections: solder terminals, tinned. Actuating force: max. 5.0 N. Actuating travel: 1.5 mm. Degree of protection: IP 40 at the switchboard front.

Illuminated pushbutton switches with permanently installed super-bright LED, type 1.15.106.

LED voltage: 2.0 V/10 mA or external protective resistor (recommended values for the LED resistor: 5.0 to 7.0 V: 270 ohm, 0.25 W, 12 to 14 V: 680 ohm, 0.5 W and 24 to 28 V: 1500 ohm, 1.0 W).

Technical attributes (type, lens color): 1.15.106.504/1600, blue

Technical specifications
Filter Property Value
Connection solder connection
Protection class IP40
Breaking capacity 0.5 A/24 V
illuminated Yes
Latching switching function groping
contact surface gold-plated
Printed No
Pin number 2 pole
Farbe der Beleuchtung blue
Installation diameter 9.1 mm
Design round
Actuator colour transparent
Logistics
Property Value
Country of origin HU
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
