1.15.106.501/1300 | RAFI

Pushbutton, 2 pole, transparent, illuminated  (red), 0.5 A/24 V, mounting Ø 9.1 mm, IP40, 1.15.106.501/1300

Order No.: 12G572
EAN: 4099889193060
MPN:
1.15.106.501/1300

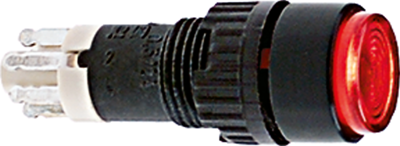

1.15.106.501/1300 RAFI Pushbutton Switches Image 1

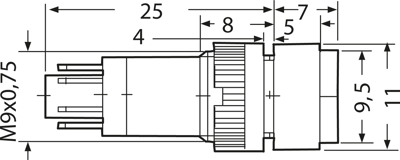

1.15.106.501/1300 RAFI Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
19.5636 € *
Available: 110 pcs.
Total Price:
19.56 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5636 €
5 pcs.
18.3736 €
15 pcs.
17.6715 €
50 pcs.
16.8861 €
150 pcs.
16.1840 €
*incl. VAT plus shipping costs
Subject to prior sale

Pushbutton and illuminated pushbutton switches, type RAFI 1.15.106.

1 NO + 1 NC; Panel-mount diameter: 9.1 mm. Mounting: with threaded ring. Bezel color: black. Switching voltage: max. 24 V. Switching current: max. 0.5 A. Connections: solder terminals, tinned. Actuating force: max. 5.0 N. Actuating travel: 1.5 mm. Degree of protection: IP 40 at the switchboard front.

Illuminated pushbutton switches with permanently installed super-bright LED, type 1.15.106.

LED voltage: 2.0 V/10 mA or external protective resistor (recommended values for the LED resistor: 5.0 to 7.0 V: 270 ohm, 0.25 W, 12 to 14 V: 680 ohm, 0.5 W and 24 to 28 V: 1500 ohm, 1.0 W).

Technical attributes (type, lens color): 1.15.106.501/1300, red

Technical specifications
Filter Property Value
Breaking capacity 0.5 A/24 V
Printed No
Latching switching function groping
illuminated Yes
Protection class IP40
Actuator colour transparent
Farbe der Beleuchtung red
Pin number 2 pole
contact surface gold-plated
Installation diameter 9.1 mm
Connection solder connection
Design round
Logistics
Property Value
Country of origin HU
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
