1.15.106.301/0104 | RAFI

Pushbutton, 2 pole, black, unlit , 0.5 A/24 V, mounting Ø 9.1 mm, IP40, 1.15.106.301/0104

Order No.: 12G540
EAN: 4099889192964
MPN:
1.15.106.301/0104

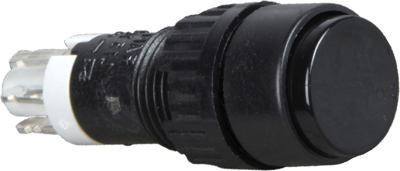

1.15.106.301/0104 RAFI Pushbutton Switches Image 1

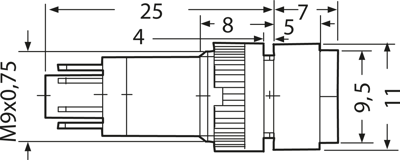

1.15.106.301/0104 RAFI Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
15.3034 € *
Available: 22 pcs.
Total Price:
15.30 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3034 €
10 pcs.
13.4589 €
50 pcs.
12.5426 €
150 pcs.
11.9833 €
500 pcs.
11.3764 €
*incl. VAT plus shipping costs
Subject to prior sale

Pushbutton and illuminated pushbutton switches, type RAFI 1.15.106.

1 NO + 1 NC; Panel-mount diameter: 9.1 mm. Mounting: with threaded ring. Bezel color: black. Switching voltage: max. 24 V. Switching current: max. 0.5 A. Connections: solder terminals, tinned. Actuating force: max. 5.0 N. Actuating travel: 1.5 mm. Degree of protection: IP 40 at the switchboard front.

Pushbutton switches, type 1.15.106.

Technical attributes (type, lens color): 1.15.106.301/0104, black

Technical specifications
Filter Property Value
Connection solder connection
Breaking capacity 0.5 A/24 V
Actuator colour black
Pin number 2 pole
contact surface gold-plated
Printed No
Design round
illuminated No
Protection class IP40
Latching switching function groping
Installation diameter 9.1 mm
Logistics
Property Value
Customs tariff number 85365080
Country of origin HU
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
