1.71.212.001/0000 | RAFI

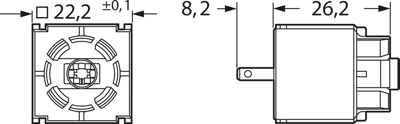

Lamp socket, 1.71.212.001/0000, W2x4.6d
Product by RAFI at Bürklin Elektronik
Lamp socket for lamp attachment , series RAFIX 16
Type: 1.71.212.001/0000
Snap-on mount on the lamp attachment. Lamp socket: wedge-base W 2 x 4.6 d. Illumination: filament lamp, single-chip LED or multi-chip LED. Rated voltage/rated power: max. 60 V/1.2 W. Connections: tinned and solderable 2.8 x 0.8 mm tab terminals. Operating temperatures with lamp: - 25 to +55 °C. Certifications: ENEC, UL, CSA.
| Connection | faston plug 2.8 x 0.8 mm | |
| Version | lamp socket | |
| Type of mounting | Snap on the light attachment | |
| Socket version | W2x4.6d |
| Country of origin | DE |
| Customs tariff number | 85366190 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
