1.30.290.921/0000 | RAFI

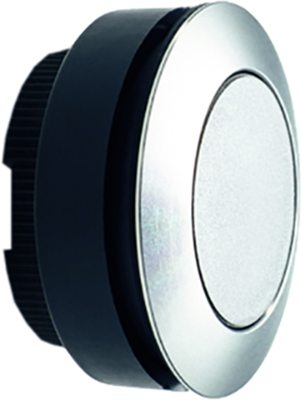

Name: Pushbutton, illuminable, groping, waistband round, front ring silver, mounting Ø 30.3 mm, 1.30.290.921/0000
Brand: RAFI
SKU: 12G9770
Price: 15.37 EUR
Availability: OutOfStock

Pushbutton, illuminable, groping, waistband round, front ring silver, mounting Ø 30.3 mm, 1.30.290.921/0000

Order No.: 12G9770

EAN: 4099889252415

MPN:

1.30.290.921/0000

Series: RAFIX 30 FS+

Image may differ

Key Specification:

Version pushbutton

Contact function groping

Collar shape of the front frame round

can be illuminated Yes

Ordering Information:

Please order the labelling sheet separately

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

15.3748 € *

Available: 0 pcs.

Leadtime: 8 Weeks **

Add to Cart

Total Price:

15.37 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pushbutton FLEXLAB Serie RAFIX 30 FS+

type: 1.30.290.921/0000

Form of lens; flush

Front ring: staninless steel

Form of collar: round

Dimensions of collar: 34.5 mm

Mounting hole: 30.3 mm

Mounting: threaded ring + Adapter

Contact function: momentary

Illuminability: yes

Degree of Protection from front side: IP 65

Technical specifications

	Version	pushbutton
	Type of mounting	threaded ring
	can be illuminated	Yes
	Collar shape of the front frame	round
	Installation diameter	30.3 mm
	Installation height	3.45 mm
	Installation depth	15.7 mm
	Front ring colour	silver
	Contact function	groping
	Protection class	IP65

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Product Change Notification - DE Product Change Notification

Logistics

Country of origin	HU
Customs tariff number	85365080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
