1.30.282.301/2201 | RAFI

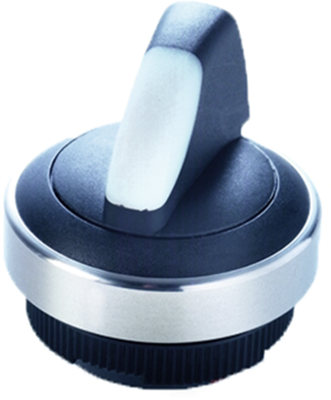

Toggle switch, illuminable, latching, waistband round, white/black, front ring black, 2 x 60°, mounting Ø 22.3 mm, 1.30.282.301/2201
Unit Price (€ / pc.)
22.8956 € *
Standard delivery time from the manufacturer is: 9 Weeks
Selector switch, illuminated, marked toggle, black front ring, series RAFIX 22 FSR
Type: 1.30.282.301/2201
Actuator: handle
Toggle marking: white, translucent
Color of front ring: black
Form of collar: round
Dimensions of collar: 31.3 mm
Mounting hole: 22.3 mm
Mounting: ring nut
Contact function: latching action
Illuminability: yes
Rotating angle: 2 x 60°
Protection: IP69
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | Yes | |
| Contact function | latching | |
| Installation diameter | 22.3 mm | |
| Rotation angle | 2 x 60° | |
| Type of mounting | threaded ring | |
| Protection class | IP65 | |
| Installation depth | 9.2 mm | |
| Installation height | 23.8 mm | |
| Front ring colour | black | |
| Product type | toggle switch | |
| Collar shape of the front frame | round | |
| Actuator colour | white/black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
