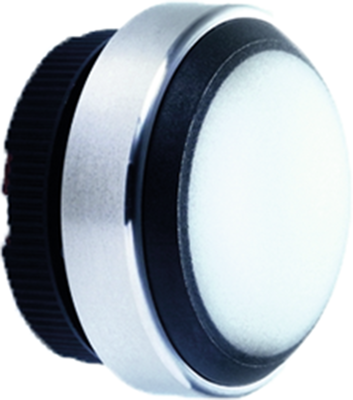

1.30.280.001/0101 | RAFI

Name: Pushbutton, unlit, groping, waistband round, white, front ring black, mounting Ø 22.3 mm, 1.30.280.001/0101
Brand: RAFI
SKU: 12G9743
Price: 15.85 EUR
Availability: OutOfStock

Pushbutton, unlit, groping, waistband round, white, front ring black, mounting Ø 22.3 mm, 1.30.280.001/0101

Order No.: 12G9743

EAN: 4099889252149

MPN:

1.30.280.001/0101

Series: RAFIX 22 FSR

Image may differ

Key Specification:

Version pushbutton

Contact function groping

Collar shape of the front frame round

can be illuminated No

Show 6 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

15.8508 € *

Available: 0 pcs.

Leadtime: 8 Weeks **

Add to Cart

Total Price:

15.85 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pushbutton, not illuminated, flush lens and black front ring, series RAFIX 22 FSR

with round collar and flush translucent lens

type: 1.30.240.021/1000

Form of lens: flush

Color of lens: opaque, black

Color of front ring: black

Form of collar: round

Dimension of collar: 31.3 mm

Mounting hole: 22.3 mm

Mounting: ring nut

Contact function: momentary

Illuminability: no

Protection of degree: IP69

Technical specifications

	Version	pushbutton
	Type of mounting	threaded ring
	can be illuminated	No
	Collar shape of the front frame	round
	Installation diameter	22.3 mm
	Installation height	12.2 mm
	Installation depth	9.2 mm
	Actuator colour	white
	Front ring colour	black
	Contact function	groping
	Protection class	IP65

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	HU
Customs tariff number	85365080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
