1.30.270.071/2400 | RAFI

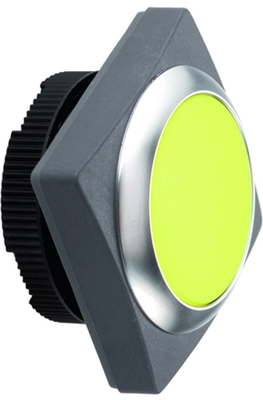

Pushbutton, illuminable, groping, waistband square, yellow, front ring silver, mounting Ø 22.3 mm, 1.30.270.071/2400

Order No.: 12G9250
EAN: 4099889250497
MPN:
1.30.270.071/2400
Series: RAFIX 22 FS+
1.30.270.071/2400 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
7.7231 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.7231 €

Pushbutton series RAFIX 22FS+

Type: 1.30.270.071/2400

Version: illuminated

Color: yellow

Function: momentary

Actuator: colored, translucent

Actuator flush with bezel, direct action to the contact block. Metallic bezel. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C. Pushbutton travel: 4.0 mm.

Technical specifications
Contact function groping
Actuator colour yellow
Installation depth 9.2 mm
Type of mounting threaded ring
Collar shape of the front frame square
Product type pushbutton
Installation height 9.85 mm
Protection class IP65
Front ring colour silver
can be illuminated Yes
Installation diameter 22.3 mm
Logistics
Country of origin HU
Customs tariff number 85365080
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
