1.30.270.071/0100 | RAFI

Name: Pushbutton, unlit, groping, waistband square, black, front ring silver, mounting Ø 22.3 mm, 1.30.270.071/0100
Brand: RAFI
SKU: 12G9255
Price: 7.40 EUR
Availability: OutOfStock

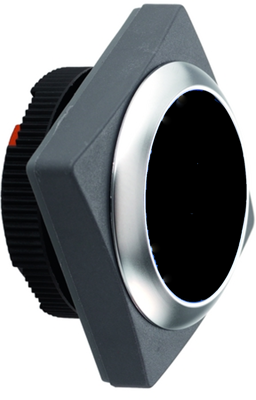

Pushbutton, unlit, groping, waistband square, black, front ring silver, mounting Ø 22.3 mm, 1.30.270.071/0100

Order No.: 12G9255

EAN: 4099889250541

MPN:

1.30.270.071/0100

Series: RAFIX 22 FS+

Image may differ

Key Specification:

Version pushbutton

Contact function groping

Collar shape of the front frame square

can be illuminated No

Show 8 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

7.4018 € *

Available: 0 pcs.

Leadtime: 8 Weeks **

Add to Cart

Total Price:

7.40 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pushbutton series RAFIX 22FS+

Type: 1.30.270.171/0100

Version: not illuminated

Color: black

Function: momentary

Actuator: colored, opaque

Actuator flush with bezel, direct action to the contact block. Metallic bezel. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C. Pushbutton travel: 4.0 mm.

Technical specifications

	Version	pushbutton
	Type of mounting	threaded ring
	can be illuminated	No
	Collar shape of the front frame	square
	Installation diameter	22.3 mm
	Installation height	9.85 mm
	Installation depth	9.2 mm
	Actuator colour	black
	Front ring colour	silver
	Contact function	groping
	Protection class	IP65
