1.30.270.021/2500 | RAFI

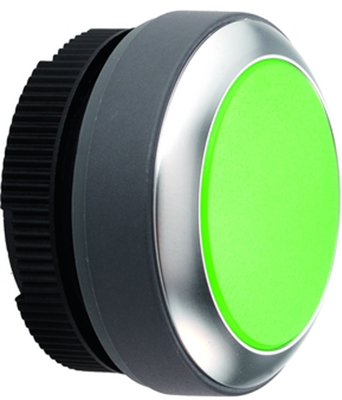

Pushbutton, illuminable, groping, waistband round, green, front ring silver, mounting Ø 22.3 mm, 1.30.270.021/2500
Unit Price (€ / pc.)
10.2459 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
10.25 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2459 €
10 pcs.
9.0202 €
50 pcs.
8.4133 €
150 pcs.
8.0325 €
500 pcs.
7.6160 €
*incl. VAT plus shipping costs
Subject to prior sale
Ultra-flat control elements, series RAFIX 22FS+, type RAFI 1.20.
Mounting depth: 9.2 mm. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: –25 to +70 °C. PCB connection with anti-twist mechanism. Pushbutton travel: 4.0 mm. End stop strength: 100 N. NC contacts: force released to IEC 947-5-1. Operating voltage: 35 VUC. Operating current: 100 mA UC. Power: max. 250 mW. Switching element: gold contacts. Illumination: 3.0 mm LED.
Pushbuttons with metal bezel series RAFIX 22FS+.
Actuator flush with bezel, direct action to the contact block. Metallic bezel.
Illuminated, type RAFIX 22FS+.
Function: momentary. Actuator: colored, translucent.
Type: 1.30.270.021/2500, green
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Protection class | IP65 | |
| Product type | pushbutton | |
| can be illuminated | Yes | |
| Collar shape of the front frame | round | |
| Type of mounting | threaded ring | |
| Installation diameter | 22.3 mm | |
| Installation height | 9.85 mm | |
| Actuator colour | green | |
| Front ring colour | silver | |
| Contact function | groping | |
| Installation depth | 9.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
