1.30.076.021/0000 | RAFI

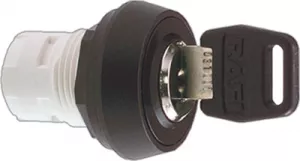

Key switch, unlit, latching, waistband round, black, 90°, trigger position 0, mounting Ø 16.2 mm, 1.30.076.021/0000
Unit Price (€ / pc.)
33.0939 € *
Available: 23 pcs.
Total Price:
33.09 € *
Price list
Quantity
Price per unit*
1 pcs.
33.0939 €
5 pcs.
31.1185 €
15 pcs.
29.9285 €
50 pcs.
28.6076 €
150 pcs.
27.4057 €
*incl. VAT plus shipping costs
Subject to prior sale
Keylock switches MICROMEC with round collar series RAFIX 16
type: 1.30.076.021/0000
Contact action: momentary or latching, design 2: slightly chamfered front ring. Locking position: 001. Supplied with 2 keys. Note: Always use momentary action contact blocks, for types with left/right turn functionality you should only use the universal contact block.
Table index: rotary angle, momentary action switch positions (left, center, right), key removal position (rem), contact Action.
functions: L 1 x 90°, center/right, rem 0, latching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Trigger position key | 0 | |
| Protection class | IP65 | |
| Installation depth | 44.7 mm | |
| Contact function | latching | |
| Installation height | 27.95 mm | |
| Installation diameter | 16.2 mm | |
| Type of mounting | threaded ring | |
| Rotation angle | 90° | |
| Collar shape of the front frame | round | |
| Actuator colour | black | |
| can be illuminated | No | |
| Product type | key switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
