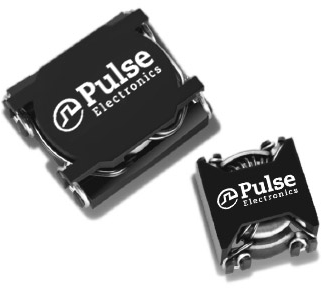

Common mode choke, SMD, 130 µH, 5 A, PA2745NL

default S
default L
Total price
(1.75 € * / pcs.)
5.25 €
Available: 1,775 pcs.
Quantity
Price per unit*
3 pcs.
1.75 €
15 pcs.
1.58 €
75 pcs.
1.44 €
400 pcs.
1.32 €
800 pcs.
1.26 €
*incl. VAT plus shipping costs
Show 6 variants
Description

Product by Pulse Electronics GmbH at Bürklin Elektronik

Common mode choke, PA2745NL, PULSE

The PA2745NL is a common mode choke, where both line and neutral windings are wound on a single core. When using a current compensated choke to decrease common mode noise, (the interference pattern or the unwanted noise) you want to have a high impedance at the unwanted frequencies to knock down that unwanted noise.

Features

  • Dielectric strength 1500 Vrms
  • Current Rating 0.5 Arms to 20 Arms
Technical specifications
Version common mode choke
Design SMD
Width 13.2 mm
DC current 5 A
DC resistance 0.00675 Ω
Height 5.6 mm
Inductance 0.13 mH
Length 13.2 mm
Measuring frequency 3 MHz
Tolerance ±35 %
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85045000
Original Packaging Tray with 40 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 12/19/11
SVHC free Yes
Variations
1 item with 6 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Common mode choke, SMD, 130 µH, 5 A, PA2745NL
