HX5120NL | Pulse Electronics GmbH

LAN transformer, 1:1, 350 µH, 65 mΩ, HX5120NL

Order No.: 05D5355
EAN: 4099889048377
MPN:
HX5120NL
MDL,SIN,1GD,1:1,SMT,TU, NPB
Series: HX

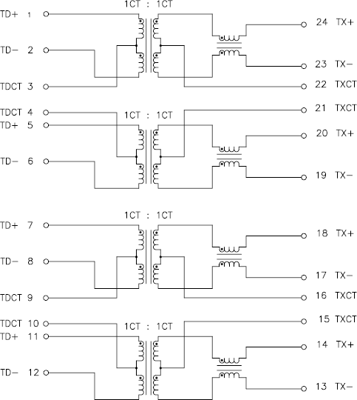

HX5120NL Pulse Electronics GmbH Coupled Inductors Image 1

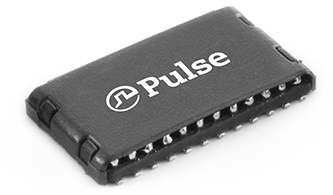

HX5120NL Pulse Electronics GmbH Coupled Inductors Image 2
Image may differ
Unit Price (€ / pc.)
18.7068 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,806.02 € *
*incl. VAT plus shipping costs
**Subject to prior sale
150 pcs.
18.7068 €

Telecom transformer for 1000Base-T applications, in 24-pin SMD package with gull-wing terminals.

Technical specifications
Product type LAN-Übertrager
Winding ratio 1:1
Inductance 350 µH
Design SMD
min. frequency 100 kHz
max. frequency 125 MHz
DC resistance 65 mΩ
Length 16.51 mm
Width 9.14 mm
Height 2.08 mm
min. operating temperature -40 °C
max. operating temperature 85 °C
Logistics
Country of origin CN
Customs tariff number 85177900
Original Packaging Stange mit 30 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
