Pulse Electronics GmbH

H5004NL | Pulse Electronics GmbH

Telecom Transformer 1:1 24 Terminal Gull Wing SMD

default S
front S
default L
front L
Total price
(13.20 € * / pcs.)
13.20 €
Available: 250 pcs.
Quantity
Price per unit*
1 pcs.
13.20 €
5 pcs.
11.88 €
10 pcs.
11.21 €
25 pcs.
10.23 €
*incl. VAT plus shipping costs
Show 3 variants
Description

Product by Pulse Electronics GmbH at Bürklin Elektronik

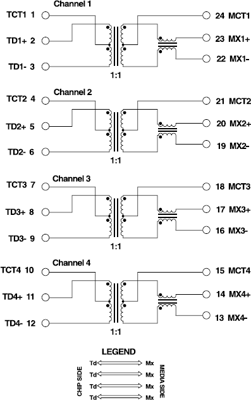

Telecom Transformer H5004NL

1000BASE-T

Technical specifications
Design SMD
Width 12.2 mm
Height 5.72 mm
Inductance 0.35 mH
Length 17.53 mm
max. frequency 100 MHz
max. operating temperature 85 °C
min. frequency 1 MHz
min. operating temperature -40 °C
Winding ratio 1:1
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85177900
MSL MSL 4
Original Packaging Bar with 25 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 12/19/11
SVHC free Yes
Variations
1 item with 3 variations
Item description
Price list
Total
Design
Width
Length
Winding ratio
max. frequency
Height
Inductance
min. operating temperature
max. operating temperature
min. frequency
Telecom Transformer 1:1 24 Terminal Gull Wing SMD
Order No.:
 05D5335
Manufacturer:
 Pulse Electronics GmbH
Manufacturer SKU
 H5007NL
350 pcs.
6.83 €
0.00 € *
Currently not in stock, we will order for you
SMD
12.2 mm
17.53 mm
1:1
100 MHz
5.72 mm
0.35 mH
-40 °C
85 °C
1 MHz
Telecomtransformer 1:1 0.65Ohm Prim. DCR0.65Ohm
Order No.:
 05D5336
Manufacturer:
 Pulse Electronics GmbH
Manufacturer SKU
 H5008NL
210 pcs.
10.61 €
0.00 € *
Currently not in stock, we will order for you
SMD
13.67 mm
18.87 mm
1:1
100 MHz
5.87 mm
0.35 mH
-40 °C
85 °C
1 MHz
Telecom Transformer 1:1 24 Terminal Gull Wing SMD
Order No.:
 05D5334
Manufacturer:
 Pulse Electronics GmbH
Manufacturer SKU
 H5004NL
1 pcs.
13.20 €
5 pcs.
11.88 €
10 pcs.
11.21 €
25 pcs.
10.23 €
13.20 € *
Available: 250 pcs.
SMD
12.2 mm
17.53 mm
1:1
100 MHz
5.72 mm
0.35 mH
-40 °C
85 °C
1 MHz
*incl. VAT plus shipping costs
