CX2045LNL | Pulse Electronics GmbH

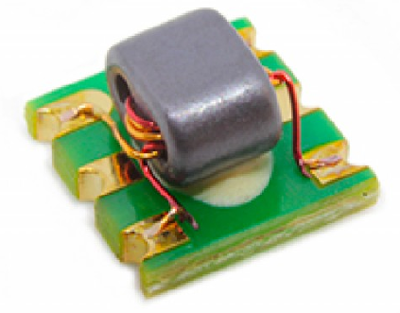

SMD-Balun Transformer 1:2

default S
front S
default L
front L
Total price
(2.50 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
1000 pcs.
2.50 €
*incl. VAT plus shipping costs
Description

Product by Pulse Electronics GmbH at Bürklin Elektronik

SMD-Balun Transformer CX2045LNL

Technical specifications
Design SMD
Width 3.81 mm
Height 2.79 mm
Length 3.81 mm
max. frequency 300 MHz
max. operating temperature 85 °C
min. frequency 3 MHz
min. operating temperature -40 °C
Winding ratio 1:2
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85043120
Original Packaging Tray with 100 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 12/19/11
SVHC free Yes
Variations
1 item with 3 variations
Item description
Price list
Total
Design
Width
Length
Winding ratio
max. frequency
Height
min. operating temperature
DC resistance
max. operating temperature
min. frequency
RF Transformer 1:1CT 5 Terminal SMDH
Order No.:
 05D5329
Manufacturer:
 Pulse Electronics GmbH
Manufacturer SKU
 CX2041NL
2 pcs.
3.27 €
10 pcs.
2.90 €
50 pcs.
2.62 €
250 pcs.
2.48 €
500 pcs.
2.33 €
6.55 € *
Available: 1,099 pcs.
SMD
3.81 mm
3.81 mm
1:1
450 MHz
2.79 mm
-40 °C
75 Ω
85 °C
0.0005 MHz
SMD-Balun Transformer 1:2
Order No.:
 05D5330
Manufacturer:
 Pulse Electronics GmbH
Manufacturer SKU
 CX2045LNL
1000 pcs.
2.50 €
0.00 € *
Currently not in stock, we will order for you
SMD
3.81 mm
3.81 mm
1:2
300 MHz
2.79 mm
-40 °C
85 °C
3 MHz
Balun Transformer 1:1 6 Terminal SMD
Order No.:
 05D5328
Manufacturer:
 Pulse Electronics GmbH
Manufacturer SKU
 CX2024NL
1 pcs.
3.75 €
5 pcs.
3.33 €
25 pcs.
3.00 €
75 pcs.
2.83 €
150 pcs.
2.68 €
3.75 € *
Available: 999 pcs.
SMD
5.18 mm
5.13 mm
1:1
1000 MHz
4.06 mm
-40 °C
75 Ω
85 °C
50 MHz
