QS10.241 | PULS

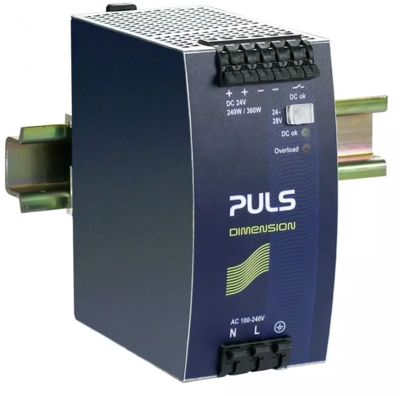

Power supply, 24 to 28 VDC, 10 A, 240 W, QS10.241
Discontinued
Unit Price (€ / pc.)
324.5725 € *
Available: 3 pcs.
Total Price:
324.57 € *
Price list
Quantity
Price per unit*
1 pcs.
324.5725 €
3 pcs.
314.8383 €
10 pcs.
304.0212 €
25 pcs.
295.9054 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supplies, type PULS DIMENSION Q-Serie.
Suitable supports parallel and series mode. Minimum inrush current. 50 % power reserve. Active harmonics correction; Operating temperatures: –25 to +70 °C. Certifications: UL, CSA, IEC 60950-1.
Single-phase, 10 A output current, type QS10.241.
Input voltage: 100 to 240 VAC (±15 %), 110 to 300 VDC (-20/+25 %). Output ripple: 50 mVpp. MTBF: 581 kh. Dimensions: W 60, H 124, D 117 mm. Weight: 900 g.
Technical attributes (type, output voltage, output power, backup time 120/230/400/480 VAC, efficiency 120/230/400/480 VAC): QS10.241, 24 V, 240 W, 27/28/-/- ms, 92.6/93.5/-/- %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 10 A | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 100-240 VAC, 110-150 VDC | |
| Power | 240 W | |
| efficiency | 93.5 % | |
| Degree of protection (IP) | IP20 | |
| Width | 60 mm | |
| Height | 124 mm | |
| Depth | 117 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
