CS5.241 | PULS

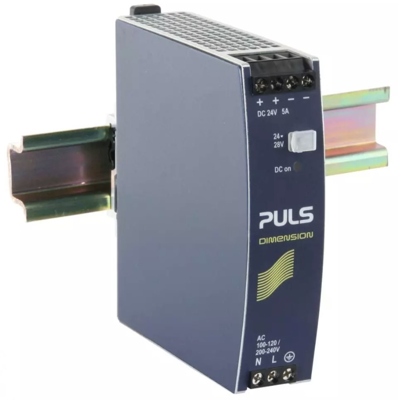

Power supply, 24 VDC, 5 A, 120 W, CS5.241
Active
Product by PULS at Bürklin Elektronik
Power supplies, type PULS DIMENSION C-Serie.
Minimum inrush current and 20 % power reserve; Connection: screw terminals. Certifications: UL, CSA, IEC 60950-1.
Single-phase, 5.0 A output current, type CS5.241.
Supports series mode; Input voltage: 100 to 120/200 to 240 VAC (±10 %). Output ripple: 50 mVpp. MTBF: 869 kh. Operating temperatures: –25 to +70 °C. Dimensions: W 32, H 124, D 117 mm. Weight: 500 g.
Technical attributes (type, output voltage, output power, backup time 120/230/400/480 VAC, efficiency 120/230/400/480 VAC): CS5.241, 24 V, 120 W, 80/78/-/- ms, 89.4/90.2/-/- %
| Number of outputs | 1 | |
| Output voltage DC | 24 VDC | |
| Output current | 5 A | |
| Width | 32 mm | |
| Input voltage AC | 100-240 VAC | |
| Height | 124 mm | |
| Power | 120 W | |
| Degree of protection (IP) | IP20 | |
| Depth | 117 mm | |
| efficiency | 90 % |
| Country of origin | CN |
| Customs tariff number | 85043180 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
