CS3.241 | PULS

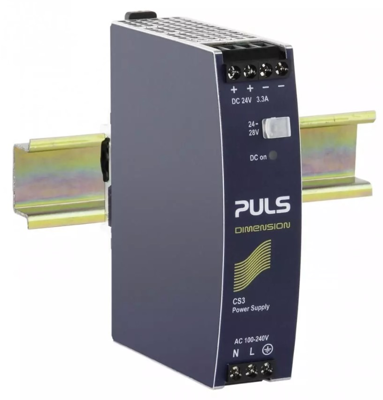

Power supply, 24 to 28 VDC, 3.3 A, 80 W, CS3.241
Discontinued
Unit Price (€ / pc.)
118.8810 € *
Available: 19 pcs.
Total Price:
118.88 € *
Price list
Quantity
Price per unit*
1 pcs.
118.8810 €
5 pcs.
112.9310 €
10 pcs.
105.9100 €
20 pcs.
100.5550 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supplies, type PULS DIMENSION C-Serie.
Minimum inrush current and 20 % power reserve; Connection: screw terminals. Certifications: UL, CSA, IEC 60950-1.
Single-phase, 3.3 A output current, type CS3.241.
Supports series mode; Input voltage: 100 to 240 VAC (±10 %), 110 to 300 VDC (-20/+25 %). Output ripple: 50 mVpp. MTBF: 2243 kh. Operating temperatures: –25 to +70 °C. Dimensions: W 32, H 124, D 102 mm. Weight: 430 g.
Technical attributes (type, output voltage, output power, backup time 120/230/400/480 VAC, efficiency 120/230/400/480 VAC): CS3.241, 24 V, 72 to 82 W, 30/128/-/- ms, 88/89.8/-/- %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 3.3 A | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 100-240 VAC, 110-300 VDC | |
| Power | 80 W | |
| efficiency | 89.8 % | |
| Degree of protection (IP) | IP20 | |
| Width | 32 mm | |
| Height | 124 mm | |
| Depth | 102 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
