CS10.241 | PULS

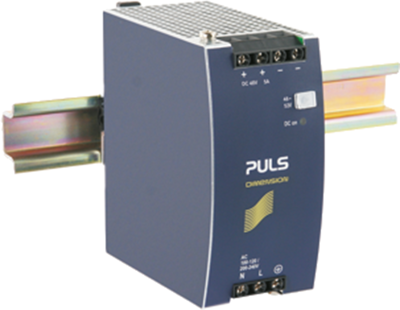

Power supply, 24 to 28 VDC, 10 A, 240 W, CS10.241
Discontinued
Unit Price (€ / pc.)
241.8556 € *
Available: 6 pcs.
Total Price:
241.86 € *
Price list
Quantity
Price per unit*
1 pcs.
241.8556 €
3 pcs.
234.5966 €
10 pcs.
226.5403 €
25 pcs.
220.4832 €
50 pcs.
215.6518 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supplies, type PULS DIMENSION C-Serie.
Minimum inrush current and 20 % power reserve; Connection: screw terminals. Certifications: UL, CSA, IEC 60950-1.
Single-phase, 5.0 A output current, type CS10.481.
Supports series mode; Input voltage: 100 to 120/200 to 240 VAC (±10 %). Output ripple: 50 mVpp. MTBF: 821 kh. Operating temperatures: –25 to +70 °C. Dimensions: W 60, H 124, D 117 mm. Weight: 700 g.
Technical attributes (type, output voltage, output power, backup time 120/230/400/480 VAC, efficiency 120/230/400/480 VAC): CS10.241, 24 V, 240 W, 46/47/-/- ms, 91/91.6/-/- %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 10 A | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 100-120 VAC, 200-240 VAC | |
| Power | 240 W | |
| efficiency | 91.6 % | |
| Degree of protection (IP) | IP20 | |
| Width | 60 mm | |
| Height | 124 mm | |
| Depth | 117 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
