1075-CX-3.0NE-AU-4.0 C | PTR

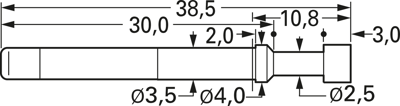

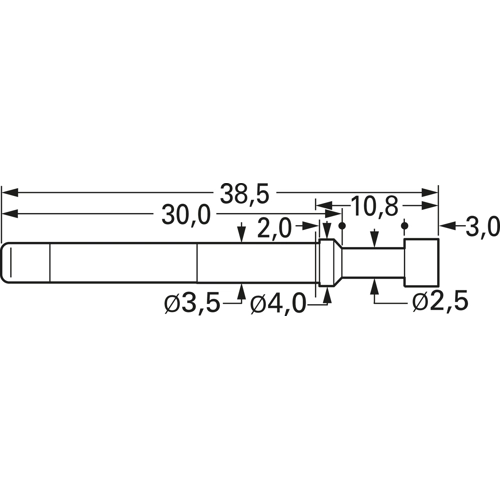

High current spring contact with probe, waffle, Ø 3.5 mm, travel 5.5 mm, pitch 5 mm, L 38.5 mm, 1075-CX-3.0NE-AU-4.0 C
Unit Price (€ / pc.)
12.0666 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
12.07 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0666 €
10 pcs.
10.6743 €
100 pcs.
9.2820 €
250 pcs.
8.5799 €
1000 pcs.
7.8897 €
*incl. VAT plus shipping costs
**Subject to prior sale
High-current probes with tip type PTR 1075.
Grid: 5.0 mm. Maximum travel: 5.5 mm. Working travel: 4.4 mm. Spring force at working travel (±20 %): 3.0 N. Spring prestress: 1.5 N. Current load: max. 50 A. Contact resistance: typically 5.0 mohm. Barrel: gold-plated brass. Spring: stainless steel, silver-plated.
Type: 1075-CX-3,0 N-Au-4,0C, CX, D 4.0, gold-plated CuBe
Technical specifications
| diameter | 3.5 mm | |
| Stroke | 5.5 mm | |
| Head shape | waffle | |
| Length | 38.5 mm | |
| Material | brass | |
| Rated current | 50 A | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
