1-1393249-1 | Potter & Brumfield
Circuit breaker, thermal, 1 pole, 2 A, 50 V (DC), 250 V (AC), faston plug 6.35 mm, panel mounting, 1-1393249-1
Order No.: 82P3269
MPN:
1-1393249-1
Unit Price (€ / pc.)
11.0789 € *
Available in 5 Days: 2,039 pcs. - if ordered today
Total Price:
11.08 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0789 €
5 pcs.
10.5077 €
10 pcs.
9.8294 €
25 pcs.
8.9607 €
*incl. VAT plus shipping costs
Subject to prior sale

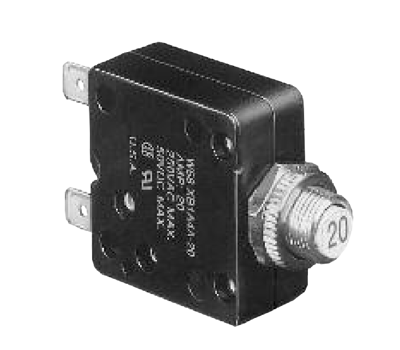

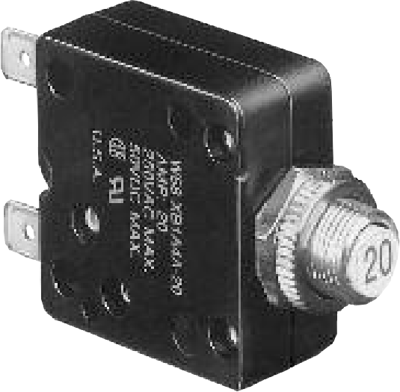

Circuit breaker, 1-1393249-1, Potter & Brumfield
Thermal Circuit Breaker, Series Trip, White Actuator, 250 VAC, 50 VDC, 2 A, 1 Pole, 10 - 45 seconds Trip Time at 200%, Potter and Brumfield W28.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 50 V | |
| Type of mounting | panel mounting | |
| Connection | faston plug 6.35 mm | |
| Rated voltage (AC) | 250 V | |
| Actuator | push actuator | |
| Version | thermal | |
| Product type | circuit breaker | |
| Pin number | 1 pole | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
