MS-324-3-1-0500 | PIC GmbH
Reed switche, magnet, 1 Form A (N/O), 10 W, 200 V (DC), 1 A, MS-324-3-1-0500
Order No.: 30G4701
EAN: 4099889448795
MPN:
MS-324-3-1-0500
Unit Price (€ / pc.)
3.8556 € *
Available: 327 pcs.
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
10 pcs.
3.3796 €
100 pcs.
2.9750 €
250 pcs.
2.8560 €
1000 pcs.
2.6537 €
*incl. VAT plus shipping costs
Subject to prior sale

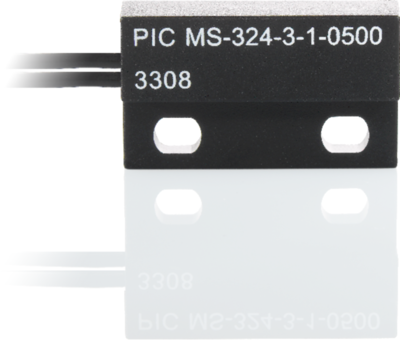

Reedsensor, MS-324-3-1-0500, PIC GmbH

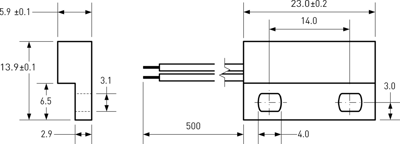

Reedsensor with a length of 23 mm, switching current 1 A, breaking capacity 10 W
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 200 V | |
| Connection | cable connection | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 1 A | |
| Length | 23 mm | |
| Product type | reed sensor | |
| Contact resistance | 200 mΩ | |
| Switching Voltage (AC) | 140 V | |
| Breaking capacity | 10 W | |
| Version | magnet |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| MSL | MSL 1 |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
