MS-313-3-1-0500 | PIC GmbH
Reed sensor, 1 Form A (N/O), 10 W, 150 V (DC), 0.5 A, MS-313-3-1-0500
Order No.: 30G4700
EAN: 4099889448788
MPN:
MS-313-3-1-0500
Unit Price (€ / pc.)
4.4625 € *
Available: 199 pcs.
Leadtime: 14 Weeks **
Total Price:
4.46 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4625 €
10 pcs.
3.9151 €
100 pcs.
3.4510 €
250 pcs.
3.3082 €
1000 pcs.
3.0821 €
*incl. VAT plus shipping costs
**Subject to prior sale

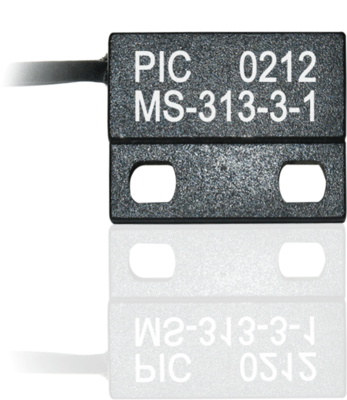

Reedsensor, MS-313-3-1-0500, PIC GmbH

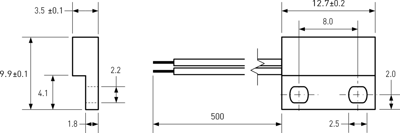

Reedsensor with a length of 12.7 mm, switching current 0.5 A, breaking capacity 10 W
Technical specifications
| Connection | cable connection | |
| Version | reed sensor | |
| Length | 12.7 mm | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 10 W | |
| Switching Voltage (DC) | 150 V | |
| switching current | 0.5 A | |
| Contact resistance | 400 mΩ |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
