MS-228-5-3-0500 | PIC GmbH
Reed switche, PA, built-in mounting M8, 1 Form A (N/O), 10 W, 200 V (DC), 0.3 A, MS-228-5-3-0500
Order No.: 30G4717
EAN: 4099889448955
MPN:
MS-228-5-3-0500
Unit Price (€ / pc.)
3.8556 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
10 pcs.
3.5700 €
50 pcs.
3.3201 €
100 pcs.
3.0940 €
*incl. VAT plus shipping costs
Subject to prior sale

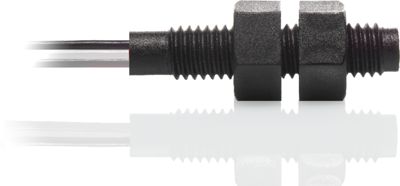

Reedsensor, MS-228-5-3-0500, PIC GmbH
Reedsensor with a diameter of 7.7 mm, length 38 mm, switching current 0.3 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 7.7 mm | |
| Switching Voltage (DC) | 200 V | |
| Length | 38 mm | |
| Assembly | built-in mounting M8 | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 0.3 A | |
| Breaking capacity | 10 W | |
| Switching Voltage (AC) | 260 V | |
| Connection | stranded wires | |
| Product type | reed sensor | |
| Contact resistance | 200 mΩ | |
| Version | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
