PIC GmbH

MS-225-3-1-0500 | PIC GmbH

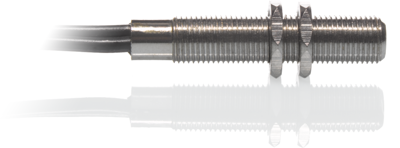

Reed sensor, built-In mounting M5, 1 Form A (NO), 10 W, 180 V (DC), 0.7 A, MS-225-3-1-0500

default S
front S
default L
front L
Order No.:  30G4714
Manufacturer:  PIC GmbH
Manufacturer SKU MS-225-3-1-0500
EAN: 4099889448924
about the green icons

Product highlights

  • Metal threaded housing M5

  • Adjustable switching point

  • Normally open / 10 W / 180 VDC

Active

Total price
( 5.3193 € * / pcs.)
5.32 €
Next delivery: 27 pcs. on 2023-04-06
Quantity
Price per unit*
1 pcs.
5.3193 €
10 pcs.
4.7838 €
50 pcs.
4.2126 €
100 pcs.
3.5819 €
*incl. VAT plus shipping costs
Add to Cart Show 6 variants
Please send price/quantity requests to info@buerklin.com
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Product by PIC GmbH at Bürklin Elektronik

Reedsensor, MS-225-3-1-0500, PIC GmbH

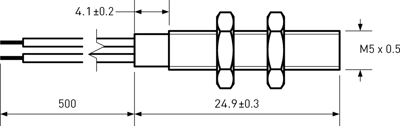

Reedsensor with a diameter of 4.7 mm, length 24.9 mm, switching current 0.7 A
Technical specifications
Connection stranded wires
Version reed sensor
diameter 4.7 mm
Length 24.9 mm
Assembly built-In mounting M5
Latching switching function 1 Form A (NO)
Breaking capacity 10 W
Switching Voltage (AC) 130 V
Switching Voltage (DC) 180 V
switching current 0.7 A
Contact resistance 150000 Ω
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85365080
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Breaking capacity
diameter
Unit
Latching switching function
Version
Switching Voltage (AC)
Unit
Length
Unit
switching current
Unit
Assembly
Connection
Switching Voltage (DC)
Unit
1 item in 6 variations
Item description
Price list
Total
Breaking capacity
diameter
Latching switching function
Version
Switching Voltage (AC)
Length
switching current
Assembly
Connection
Switching Voltage (DC)
Reed sensor, built-In mounting M8, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, MS-228-4-1-0500
Reed sensor, built-In mounting M8, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, MS-228-4-1-0500
Order No.:
 30G4716
Manufacturer:
 PIC GmbH
Manufacturer SKU
 MS-228-4-1-0500
1 pcs.
6.7473 €
10 pcs.
6.0928 €
50 pcs.
5.3431 €
100 pcs.
4.5458 €
6.75 € *
Available: 39 pcs.
Next delivery: 250 pcs. on 2023-04-05
5 W
7.7 mm
1 Form C (NO/NC)
reed sensor
120 V
38 mm
0.25 A
built-In mounting M8
stranded wires
175 V
Reed sensor, built-In mounting M6, 1 Form A (NO), 10 W, 200 V (DC), 1 A, MS-226M-3-1-0500
Reed sensor, built-In mounting M6, 1 Form A (NO), 10 W, 200 V (DC), 1 A, MS-226M-3-1-0500
Order No.:
 30G4719
Manufacturer:
 PIC GmbH
Manufacturer SKU
 MS-226M-3-1-0500
1 pcs.
9.0083 €
10 pcs.
8.1277 €
50 pcs.
7.1400 €
100 pcs.
6.2832 €
9.01 € *
Next delivery: 250 pcs. on 2023-04-05
10 W
6 mm
1 Form A (NO)
reed sensor
250 V
38 mm
1 A
built-In mounting M6
stranded wires
200 V
Reed sensor, built-In mounting M5, 1 Form A (NO), 10 W, 180 V (DC), 0.7 A, MS-225-3-1-0500
Reed sensor, built-In mounting M5, 1 Form A (NO), 10 W, 180 V (DC), 0.7 A, MS-225-3-1-0500
Order No.:
 30G4714
Manufacturer:
 PIC GmbH
Manufacturer SKU
 MS-225-3-1-0500
1 pcs.
5.3193 €
10 pcs.
4.7838 €
50 pcs.
4.2126 €
100 pcs.
3.5819 €
5.32 € *
Next delivery: 27 pcs. on 2023-04-06
10 W
4.7 mm
1 Form A (NO)
reed sensor
130 V
24.9 mm
0.7 A
built-In mounting M5
stranded wires
180 V
Reed sensor, built-In mounting M8, 1 Form A (NO), 10 W, 200 V (DC), 1 A, MS-228-3-1-0500
Reed sensor, built-In mounting M8, 1 Form A (NO), 10 W, 200 V (DC), 1 A, MS-228-3-1-0500
Order No.:
 30G4715
Manufacturer:
 PIC GmbH
Manufacturer SKU
 MS-228-3-1-0500
2 pcs.
3.5343 €
10 pcs.
3.1892 €
50 pcs.
2.7965 €
7.07 € *
Available: 274 pcs.
10 W
7.7 mm
1 Form A (NO)
reed sensor
140 V
38 mm
1 A
built-In mounting M8
stranded wires
200 V
Reed sensor, built-In mounting M8, 1 Form A (NO), 10 W, 200 V (DC), 0.3 A, MS-228-5-3-0500
Reed sensor, built-In mounting M8, 1 Form A (NO), 10 W, 200 V (DC), 0.3 A, MS-228-5-3-0500
Order No.:
 30G4717
Manufacturer:
 PIC GmbH
Manufacturer SKU
 MS-228-5-3-0500
1 pcs.
4.1769 €
10 pcs.
3.8675 €
50 pcs.
3.6057 €
100 pcs.
3.3558 €
4.18 € *
Currently not in stock, we will order for you
10 W
7.7 mm
1 Form A (NO)
reed sensor
260 V
38 mm
0.3 A
built-In mounting M8
stranded wires
200 V
Reed sensor, built-In mounting M12, 1 Form A (NO), 50 W, 200 V (DC), 1.5 A, MS-2212M-6-4-0500
Reed sensor, built-In mounting M12, 1 Form A (NO), 50 W, 200 V (DC), 1.5 A, MS-2212M-6-4-0500
Order No.:
 30G4725
Manufacturer:
 PIC GmbH
Manufacturer SKU
 MS-2212M-6-4-0500
1 pcs.
14.8631 €
10 pcs.
13.8159 €
50 pcs.
12.8520 €
100 pcs.
12.0785 €
14.86 € *
Available: 41 pcs.
50 W
12 mm
1 Form A (NO)
reed sensor
250 V
38 mm
1.5 A
built-In mounting M12
stranded wires
200 V
