MS-228-4-1-0500 | PIC GmbH
Reed switche, built-in mounting M8, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, MS-228-4-1-0500
Order No.: 30G4716
EAN: 4099889448948
MPN:
MS-228-4-1-0500
Unit Price (€ / pc.)
6.2237 € *
Available: 437 pcs.
Total Price:
6.22 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2237 €
10 pcs.
5.4740 €
100 pcs.
4.7957 €
250 pcs.
4.6172 €
1000 pcs.
4.3197 €
*incl. VAT plus shipping costs
Subject to prior sale

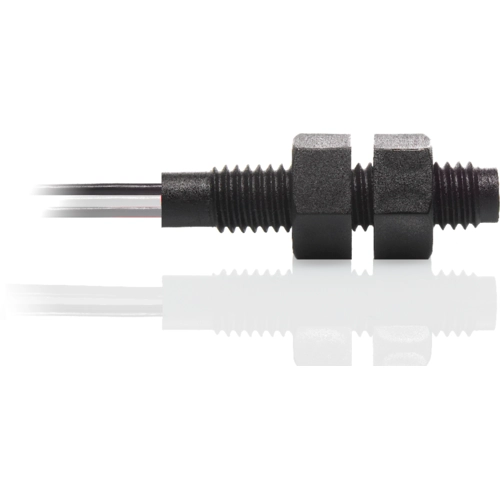

Reedsensor, MS-228-4-1-0500, PIC GmbH

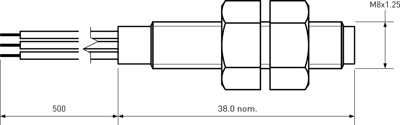

Reedsensor with a diameter of 7.7 mm, length 38 mm, switching current 0.25 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 7.7 mm | |
| Switching Voltage (DC) | 175 V | |
| Connection | stranded wires | |
| Latching switching function | 1 Form C (NO/NC) | |
| switching current | 0.25 A | |
| Length | 38 mm | |
| Product type | reed sensor | |
| Assembly | built-in mounting M8 | |
| Contact resistance | 200 mΩ | |
| Switching Voltage (AC) | 120 V | |
| Breaking capacity | 5 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| MSL | MSL 1 |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
