MS-228-3-1-0500 | PIC GmbH
Reed switche, magnet, built-in mounting M8, 1 Form A (N/O), 10 W, 200 V (DC), 1 A, MS-228-3-1-0500
Order No.: 30G4715
EAN: 4099889448931
MPN:
MS-228-3-1-0500
Unit Price (€ / pc.)
3.2725 € *
Available: 249 pcs.
Total Price:
3.27 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2725 €
10 pcs.
2.8798 €
100 pcs.
2.5228 €
250 pcs.
2.4276 €
1000 pcs.
2.2610 €
*incl. VAT plus shipping costs
Subject to prior sale

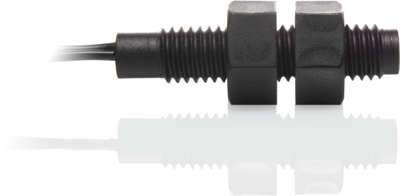

Reedsensor, MS-228-3-1-0500, PIC GmbH

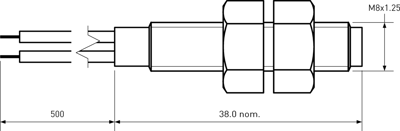

Reedsensor with a diameter of 7.7 mm, length 38 mm, switching current 1 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 140 V | |
| Product type | reed sensor | |
| diameter | 7.7 mm | |
| Switching Voltage (DC) | 200 V | |
| Length | 38 mm | |
| Connection | stranded wires | |
| Latching switching function | 1 Form A (N/O) | |
| Assembly | built-in mounting M8 | |
| Version | magnet | |
| Contact resistance | 200 mΩ | |
| switching current | 1 A | |
| Breaking capacity | 10 W |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85365080 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
