3240545 | Phoenix Contact

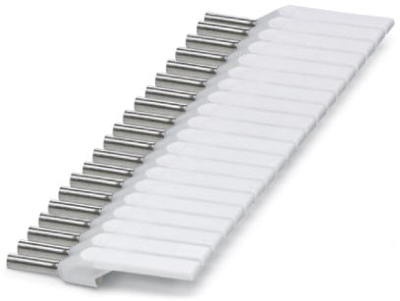

Insulated wire end ferrule, 1.5 mm², 29.5 mm/8 mm long, white, 3240545

Order No.: 60P6568
EAN: 4046356547772
MPN:
3240545
AI-WM 1,5-8 WH
Series: AI-WM
3240545 Phoenix Contact Wire-end Ferrules
Image may differ
Unit Price (€ / pc.)
0.2261 € *
Available in 10 days: 14,875 pcs. - if ordered today
Total Price:
176.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
780 pcs.
0.2261 €

Ferrule, 3240545, Phoenix Contact

Ferrule with insulating collar that can be labeled. When using the magazine, the ferrules can be labeled with BLUEMARK. Ferrule is made from electrolytic copper.

Features

  • Electrogalvanized
  • Highly resistant and optimum printing quality thanks to modern UV printing technology
  • Crimping and marking in one step
Technical specifications
max. operating temperature 105 °C
Material Insulation polypropylene
Pin lenght 8 mm
Isolated Yes
Colour white
Cable cross-section 1.5 mm²
Contact material copper
Length 29.5 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
