3240543 | Phoenix Contact

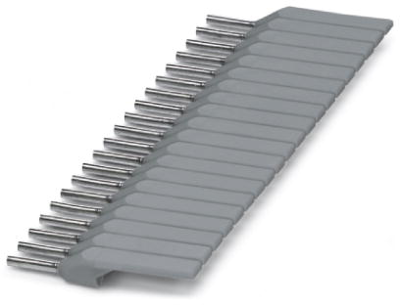

Insulated wire end ferrule, 0.75 mm², 29 mm/8 mm long, gray, 3240543
Unit Price (€ / pc.)
0.2237 € *
Available in 10 days: 26,920 pcs. - if ordered today
Ferrule, 3240543, Phoenix Contact
Ferrule with insulating collar that can be labeled. When using the magazine, the ferrules can be labeled with BLUEMARK. Ferrule is made from electrolytic copper.
Features
- Electrogalvanized
- Highly resistant and optimum printing quality thanks to modern UV printing technology
- Crimping and marking in one step
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin lenght | 8 mm | |
| Colour | gray | |
| Isolated | Yes | |
| Length | 29 mm | |
| Material Insulation | polypropylene | |
| Cable cross-section | 0.75 mm² | |
| Contact material | copper | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
