3203040 | Phoenix Contact
Insulated wire end ferrule, 0.25 mm², 10.5 mm/6 mm long, blue, 3203040
Unit Price (€ / pc.)
0.0833 € *
Available: 361 pcs.
Next delivery: 100 pcs. on 2025-11-07
Available in 5 Days: 512,600 pcs. - if ordered today
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0833 €
100 pcs.
0.0726 €
500 pcs.
0.0643 €
1000 pcs.
0.0547 €
5000 pcs.
0.0357 €
*incl. VAT plus shipping costs
Subject to prior sale

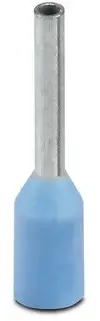

Ferrule, 3203040, Phoenix Contact
Ferrule, sleeve length: 6 mm, length: 10.5 mm, color: blue. The ferrule's plastic sleeve is made from soft tin-plated electrolytic copper.
Features
- The AI 0,25.. ferrule can also be used to process 0.14 mm² conductors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin lenght | 6 mm | |
| max. operating temperature | 105 °C | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 10.5 mm | |
| Material Insulation | polypropylene | |
| Colour | blue | |
| Cable cross-section | 0.25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
