3201848 | Phoenix Contact
Insulated wire end ferrule, 70 mm², 37 mm/20 mm long, yellow, 3201848
Unit Price (€ / pc.)
0.5712 € *
Available in 5 Days: 6,325 pcs. - if ordered today

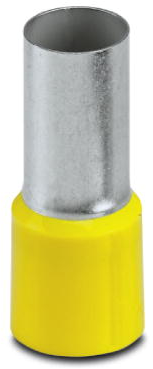

Ferrule, 3201848, Phoenix Contact
Ferrule, sleeve length: 20 mm, length: 37 mm, color: yellow. The ferrule's plastic sleeve is made from soft tin-plated electrolytic copper.
Features
- The insulation reliability of close connections is increased and the splicing of wires is prevented
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Contact material | copper | |
| Colour | yellow | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 70 mm² | |
| Material Insulation | polypropylene | |
| Pin lenght | 20 mm | |
| Length | 37 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
