3201408 | Phoenix Contact
Insulated wire end ferrule, 2.5 mm², 14 mm/8 mm long, blue, 3201408
Unit Price (€ / pc.)
0.0500 € *
Available in 5 Days: 2,158,000 pcs. - if ordered today

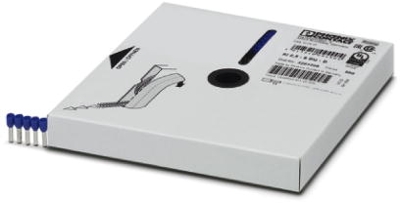

Ferrule, 3201408, Phoenix Contact
Ferrule, 2.5 mm², taped, sleeve length: 8 mm, with plastic collar, galvanically tin-plated, color: blue. The Taped ferrule were developed specifically for the crimping machine CF 3000 -2,5.
Features
- Can be used to wire all terminal blocks, especially those of the CLIPLINE complete system
- Available in the main color ranges up to 2.5 mm²
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C | |
| Isolated | Yes | |
| Cable cross-section | 2.5 mm² | |
| Pin lenght | 8 mm | |
| Length | 14 mm | |
| Contact material | copper | |
| Colour | blue |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
