3200917 | Phoenix Contact

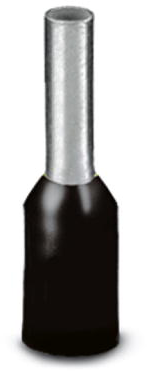

Wire end ferrule, 1.5 mm², 14 mm/8 mm long, black, 3200917
Unit Price (€ / pc.)
0.0226 € *
Available in 5 Days: 325,000 pcs. - if ordered today
Wire end ferrule, 3200917, Phoenix Contact
A special feature of AI... ferrules with insulating collars is that the tighter the connections, the more reliable the insulation and the less likely the wires are to splice. Insulation and the lower the probability of the wires splicing. The dimensions of the ferrules comply with DIN 46228-4. The metallic insulating sleeve is made of a soft
electrolytic copper (CU-DHP) with a tin coating. The insulating collar is made of extremely heat-resistant polypropylene.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | electrolytic copper | |
| Colour | black | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 1.5 mm² | |
| Material Insulation | polypropylene | |
| Pin lenght | 8 mm | |
| Length | 14 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
