3200755 | Phoenix Contact
Insulated wire end ferrule, 1.5 mm², 12 mm/6 mm long, NF C 63-023, black, 3200755
Unit Price (€ / pc.)
0.0643 € *
Available in 5 Days: 13,500 pcs. - if ordered today

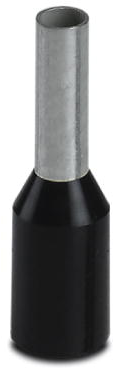

Ferrule, 3200755, Phoenix Contact
Ferrule, sleeve length: 6 mm, length: 12 mm, color: black. The ferrule's plastic sleeve is made from soft tin-plated electrolytic copper.
Features
- The insulation reliability of close connections is increased and the splicing of wires is prevented
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 1.5 mm² | |
| Isolated | Yes | |
| Colour | black | |
| Length | 12 mm | |
| Pin lenght | 6 mm | |
| Standard number | NF C 63-023 | |
| Contact material | copper | |
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
