1200293 | Phoenix Contact

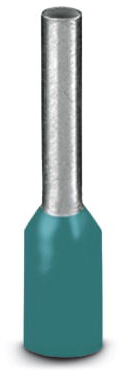

Insulated Wire end ferrule, 1.0 mm², 14.5 mm/8 mm long, DIN 46228/4, turquoise, 1200293
Order No.: 60P6540
EAN: 4055626388106
MPN:
1200293
AI-S 1 - 8 TQ
Unit Price (€ / pc.)
0.0440 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Ferrule, 1200293, Phoenix Contact
Ferrule, S-Slimline, sleeve length: 8 mm, length: 14.5 mm, color: turquoise. The ferrule's plastic sleeve is made from soft tin-plated electrolytic copper.
Features
- Plastic collar with optimized diameter for 1.0 mm² cables, with max. insulation outside diameter of 2.8 mm.
- Suitable for all PT 1,5/S terminal blocks and COMBI connectors with a width of 3.5 mm
- The insulation reliability of close connections is increased and the splicing of wires is prevented
Technical specifications
| Colour | turquoise | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 14.5 mm | |
| Cable cross-section | 1.0 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
