1209091 | Phoenix Contact

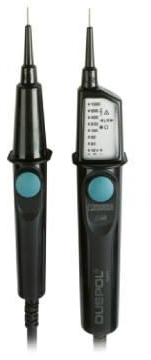

Phoenix Contact voltage tester, 1209091, DUSPOL EXPERT
Unit Price (€ / pc.)
83.9545 € *
Available in 5 Days: 285 pcs. - if ordered today
Voltage tester, 1209091, Phoenix Contact
Voltage tester, for DC and AC voltages from 12 V to 1000 V AC / 1000 V DC, IP65
Features
- Acoustic and optical continuity test
- Overvoltage category CAT IV 600 V u. CAT III 1000 V according to IEC/EN 61243-3
- Vibration alarm for safe voltage detection
- Shockproof, dust and splash-proof housing, IP65
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. voltage measuring range (AC) | 1000 V | |
| Rated category | CAT III, CAT IV | |
| Degree of protection (IP) | IP65 | |
| max. voltage measuring range (DC) | 1000 V | |
| Version | voltage tester | |
| Display | LED |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | IE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
