1653854 | Phoenix Contact
PHOENIX CO 1653854
Order No.: 62P5101
EAN: 4017918970185
MPN:
1653854
VS-04-BUA-FK-F/IP67
Unit Price (€ / pc.)
37.6992 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

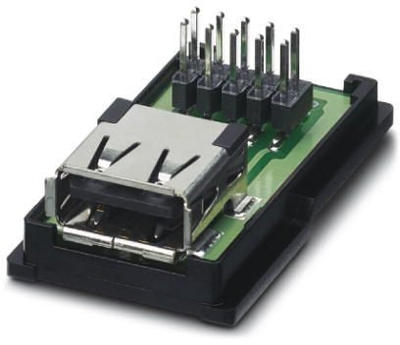

USB socket insert VS-04-BUA-FK-F/IP67

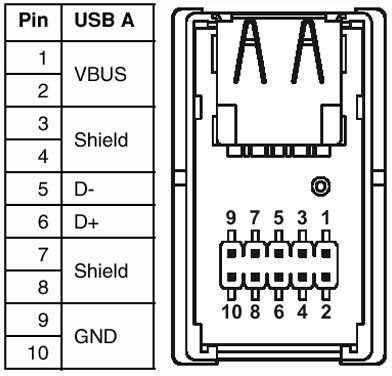

USB socket insert, 4-pin, USB type A socket on ribbon cable connection strip, pitch 2.54, for the Freenet system in the mounting frame, terminal outlet IP20, 19 patch panel and service interface
The technical features of 1653854 from Phoenix Contact at a glance
- Product type designation : VS-04-BUA-FK-F/IP67
- Number of poles : 4
- Flammability class of the insulating material (based on UL 94) : V0
- Rated current : 1 A
- Number of power contacts : 4, 4
- Number of control contacts : 0
- Article description : VS-04-BUA-FK-F/IP67
- Rated voltage : 30 V
- Contact coating material : Gold over nickel
- Mating cycles, minimum : 1000
- min. Ambient temperature : -15 °C
- min. Operating temperature : -15 °C
- max. Ambient temperature : 65 °C
- max. Operating temperature : 65 °C
Further links to Phoenix Contact 1653854
Under the following links you will find more information about Phoenix Contact 1653854
" Technical specifications
Version | socket | |
Pin number | 4 pole | |
USB Standard | USB |
Download
Logistics
Country of origin | DE |
Customs tariff number | 85366990 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
