2907080 | Phoenix Contact

Phoenix Contact QUINT4-PS/1AC/48DC/5

Order No.: 64P3264

EAN: 4055626171715

MPN:

2907080

QUINT4-UPS/24DC/24DC/40/EIP

Series: QUINT

Image may differ

Key Specification:

Number of outputs 1

Output current 40 A

Output voltage DC 18 to 30 VDC

Input voltage AC 18-30 VDC

Power 960 W

Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description

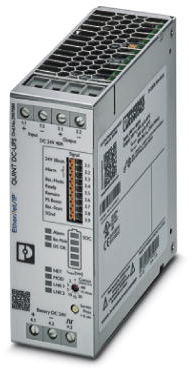

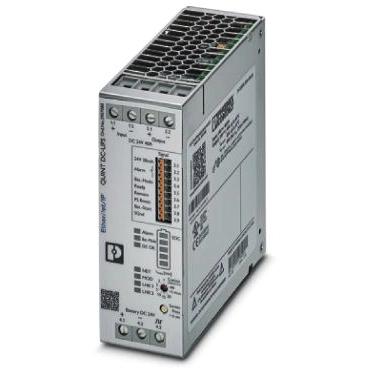

Uninterruptible power supply, 2907080, Phoenix Contact

QUINT UPS with IQ Technology, RJ45 communication interfaces (EtherNet/IP), for DIN rail mounting, Input: 24 VDC, Output: 24 VDC/40 A, Charging current: 5 A.

Features

Easy integration into networks using PROFINET, EtherNet/IP, EtherCAT and USB interfaces
Evaluation of state of health (SOH) and state of charge (SOC), thanks to the intelligent battery management system (BMS)
Automatic recognition of the battery capacities and technologies (VRLA-WTR, LI-ION)
Monitoring of output current and voltage, as well as manual connection and disconnection of the system
SFB Technology selectively trips standard miniature circuit breakers. Loads connected in parallel continue working

Technical specifications

Filter	Property	Value
	Number of outputs	1
	Output current	40 A
	Output voltage DC	18 to 30 VDC
	Input voltage AC	18-30 VDC
	Power	960 W
	efficiency	97 %
	Length	125 mm
	Width	47 mm
	Height	130 mm
	min. operating temperature	-25 °C
	max. operating temperature	70 °C
