3047125 | Phoenix Contact
Pick off terminal block, 32 A, 1000 V, 3047125, AGK 4-UT 16
Order No.: 60P0020
EAN: 4046356055895
MPN:
3047125
AGK 4-UT 16
Unit Price (€ / pc.)
4.0817 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

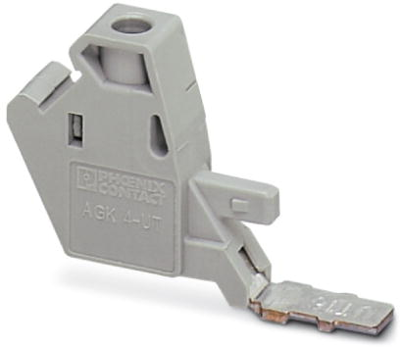

Pick-off terminal block, 3047125, Phoenix Contact
Pick-off terminal block, Nominal voltage: 1000 V, Nominal current: 32 A, Connection method: screw connection, Cross section: 0.14-6 mm², Mounting type: on base element, Color: gray.
Features
- The fully insulated, optional use pick-off terminal block enables voltage pick-off
- Large-surface marking
- Pick-off terminal block, for snapping into the lateral guide
Technical specifications
| Connection | screw connection | |
| Version | pick off terminal block | |
| Width | 8.1 mm | |
| Height | 55.7 mm | |
| Length | 39.4 mm | |
| Rated voltage | 1000 V | |
| Rated current | 32 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
