3003554 | Phoenix Contact

Pick off terminal block, 57 A, 1000 V, 3003554, AGK 10-UKH 150/240

Order No.: 60P0017
EAN: 4017918104245
MPN:
3003554
AGK 10-UKH 150/240
Series: AGK
3003554 Phoenix Contact Transfer Modules for Mounting Rail
Image may differ
Unit Price (€ / pc.)
7.8540 € *
Available in 5 Days: 766 pcs. - if ordered today
Total Price:
7.85 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8540 €
10 pcs.
7.2233 €
50 pcs.
6.5807 €
100 pcs.
5.9143 €
*incl. VAT plus shipping costs
Subject to prior sale

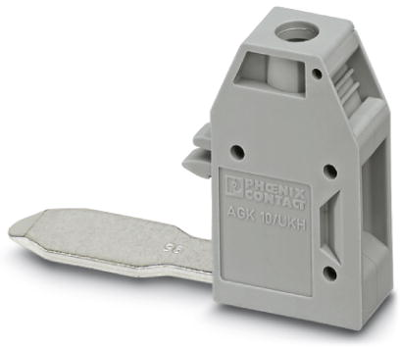

Pick-off terminal block, 3003554, Phoenix Contact

Pick-off terminal block can only be used in conjunction with UKH 150/240, Nominal voltage: 1000 V, Nominal current: 57 A, Connection method: screw connection, Rated cross section: 10 mm², Cross section: 0.5-10 mm², Mounting type: on base element, Color: gray.

Features

  • Large-surface marking
  • The fully insulated, optional use pick-off terminal block enables voltage pick-off
  • Pick-off terminal block, for snapping into the lateral guide
Technical specifications
Filter Property Value
Width 10.2 mm
Connection screw connection
Version pick off terminal block
Length 20.7 mm
Height 34.7 mm
Rated current 57 A
Rated voltage 1000 V
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
