3001763 | Phoenix Contact

Pick off terminal block, 57 A, 1000 V, 3001763, AGK 10-UKH 50

Order No.: 60P0018
EAN: 4017918100865
MPN:
3001763
AGK 10-UKH 50
Series: AGK
3001763 Phoenix Contact Transfer Modules for Mounting Rail
Image may differ
Unit Price (€ / pc.)
7.5565 € *
Available in 5 Days: 2,082 pcs. - if ordered today
Total Price:
7.56 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5565 €
10 pcs.
6.9496 €
50 pcs.
6.3308 €
100 pcs.
5.6882 €
*incl. VAT plus shipping costs
Subject to prior sale

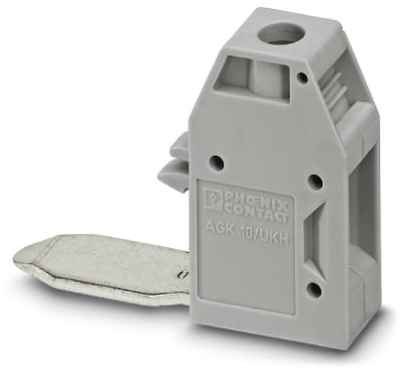

Pick-off terminal block, 3001763, Phoenix Contact

Pick-off terminal block can only be used in conjunction with UKH 50/70, Nominal voltage: 1000 V, Nominal current: 57 A, Connection method: screw connection, Rated cross section: 10 mm², Cross section: 0.5-10 mm², Color: gray.

Features

  • Large-surface marking
  • The fully insulated, optional use pick-off terminal block enables voltage pick-off
  • Pick-off terminal block, for snapping into the lateral guide
Technical specifications
Filter Property Value
Width 10.2 mm
Connection screw connection
Version pick off terminal block
Length 20.7 mm
Height 34.7 mm
Rated current 57 A
Rated voltage 1000 V
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
