2908892 | Phoenix Contact
Transfer module, 37 pole, 0.5 A, 30 V, 2908892, FLX-D37F/32CH/DO/TDC3K
Unit Price (€ / pc.)
1,537.9560 € *
Standard delivery time from the manufacturer is: 15 Weeks

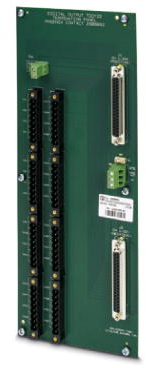

Interface module, 2908892, Phoenix Contact
Migration board for converting TDC3000 to modern control platforms, Digital output, 32 channel.
Features
- Panel mount to existing TDC3000 chassis
- Compatable with existing pluggable field wiring connectors
- DSUB control side connection
- Terminal blocks for power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | transfer module | |
| Pin number | 37 pole | |
| Rated current | 0.5 A | |
| Rated voltage | 30 V | |
| Length | 38.3 mm | |
| Width | 307.3 mm | |
| Height | 120.7 mm | |
| Connection | D-Sub connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85176200 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
