2716512 | Phoenix Contact
Sensor/actuator terminal block, 24 A, 250 V, 2716512, DIKD 1,5-2D
Order No.: 60P0240
EAN: 4017918061951
MPN:
2716512
DIKD 1,5-2D
Unit Price (€ / pc.)
6.8663 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

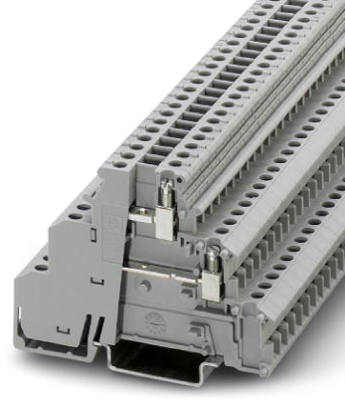

Sensor/actuator terminal block, 2716512, Phoenix Contact
Sensor/actuator terminal block, Nominal voltage: 250 V, Nominal current: 24 A, Connection method: screw connection, 1st and 2nd level, Rated cross section: 2.5 mm², Cross section: 0.2-4 mm², Mounting type: NS 35/7.5, NS 35/15, Color: gray.
Features

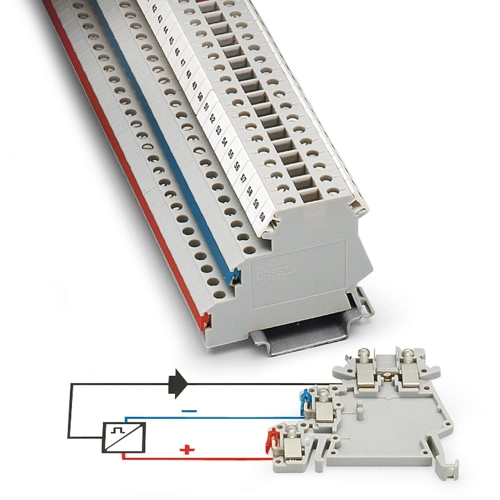

- The first initiator can also be connected to this three-conductor feed-through terminal block
- The positive and negative potential can be supplied to the insertion bridges via this power terminal block
Technical specifications
| Connection | screw connection | |
| Version | Sensor/actuator terminal block | |
| Width | 6.2 mm | |
| Height | 54.5 mm | |
| Length | 72.5 mm | |
| Rated voltage | 250 V | |
| Rated current | 24 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
