Phoenix Contact temperature transducer, 2810308, MINI MCR-SL-PT100-LP-NC
Unit Price (€ / pc.)
231.1218 € *
Available in 10 days: 139 pcs. - if ordered today

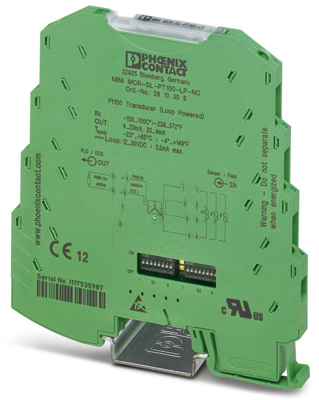

Temperature measuring transducer, 2810308, Phoenix Contact
Configurable loop-powered temperature transducer for Pt 100 temperature sensors, configured via DIP switches, with screw connection, not pre-configured.
Features
- 2-, 3-, 4-conductor Pt 100 sensors
- Highly-compact loop-powered temperature transducer for electrical isolation, conversion, amplification, and filtering of Pt 100 signals to create standard signals
- Does not require additional auxiliary voltage
- Error indication via diagnostic LED and analog signal
- 2-way isolation
- Input signals can be configured via DIP switches
- Supplied by an output loop
- Temperature measuring range of -150°C to +300°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 300 °C | |
| Product type | temperature transducer | |
| min. operating temperature | -150 °C | |
| Accuracy | ±5 % | |
| Response Time | 200 ms |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
