3073050 | Phoenix Contact

Knife disconnect terminal for connection terminal, 3073050

Order No.: 60P5766
EAN: 4046356333931
MPN:
3073050
UT 4-QUATTRO-MT BU
Series: UT
3073050 Phoenix Contact Terminals Accessories
Image may differ
Unit Price (€ / pc.)
4.8195 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.8195 €

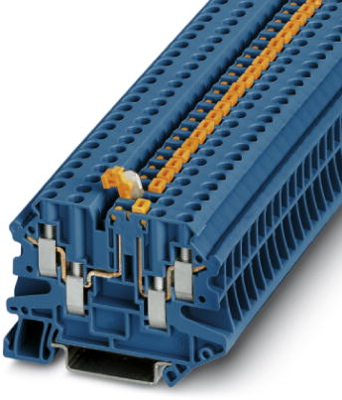

Knife-disconnect terminal block, 3073050, Phoenix Contact

Knife-disconnect terminal block, Nominal voltage: 500 V, Nominal current: 20 A, Connection method: screw connection, Rated cross section: 2.5 mm², Cross section: 0.14-6 mm², Mounting: NS 35/7,5, NS 35/15, Color: blue

Features

  • Double bridge shaft enables individual potential distribution and supply
  • Compact design and high current carrying capacity of 20 A
Technical specifications
Product type knife disconnect terminal
Suitable for connection terminal
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
