3036799 | Phoenix Contact
Component plug for terminal block, 3036799
Unit Price (€ / pc.)
10.7338 € *
Available in 10 days: 430 pcs. - if ordered today
Total Price:
10.73 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7338 €
10 pcs.
9.8770 €
50 pcs.
8.9845 €
100 pcs.
8.0920 €
*incl. VAT plus shipping costs
Subject to prior sale

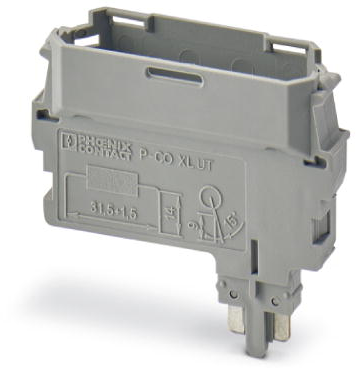

Component connector, 3036799, Phoenix Contact
Component connector for installing components that can be individually selected up to a diameter of 10 mm and power dissipation of up to 1 W, Nominal current: 10 A, Length: 41.2 mm, Width: 12.3 mm, Height: 37.5 mm, Number of positions: 1, Color: gray
Features
- Suitable for discreet components with high power dissipation
- Can be used in all terminal blocks with disconnect zone
- Solderless spring-cage connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | terminal block | |
| Product type | component plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
