1713226 | Phoenix Contact
Feed through terminal, 1 pole, 25-95 mm², clamping points: 2, gray, screw connection, 232 A
Order No.: 64P0349
EAN: 4055626308395
MPN:
1713226
UWV 95/S
Unit Price (€ / pc.)
19.6112 € *
Available: 0 pcs.
Leadtime: On Request **

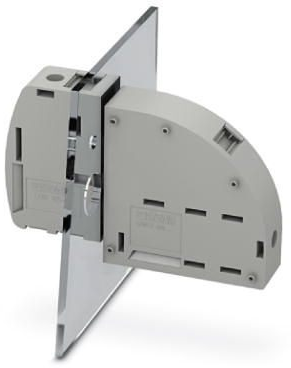

Terminal block, 1713226, Phoenix Contact
Panel feed-through terminal block, connection method: screw connection with tension sleeve, number of positions: 1, load current: 232 A, connection direction of the conductor to plug-in direction: - 90 °, width: 25 mm.
Features
- Well-known connection principle allows worldwide use
- Low temperature rise, thanks to maximum contact force
- Tool-free snap-in principle enables easy mounting on the device panel
- Automatic panel thickness compensation enables universal use
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | feed through terminal | |
| AWG cross-section | AWG 4-3 | |
| Colour | gray | |
| Cable cross-section | 25-95 mm² | |
| Rated current | 232 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
